Arc Flash Study
Arc flash study is an electrical safety assessment used to identify arc flash hazards and determine incident energy levels in power systems. As a result, it helps improve worker safety by defining PPE requirements, warning labels, and effective risk reduction measures.
Arc Flash Study Overview
An arc flash occurs when electrical current leaves its intended path and travels through the air between conductors. This situation can develop due to loose connections, insulation failure, dust or moisture inside panels, or accidental contact with tools and foreign objects.
During an arc flash event, temperatures can rise to extremely high levels. Consequently, metal components may melt, pressure waves can be released, and intense light and sparks may spread outward, creating serious safety risks.
How Arc Flash Analysis Is Performed
1. System Modeling

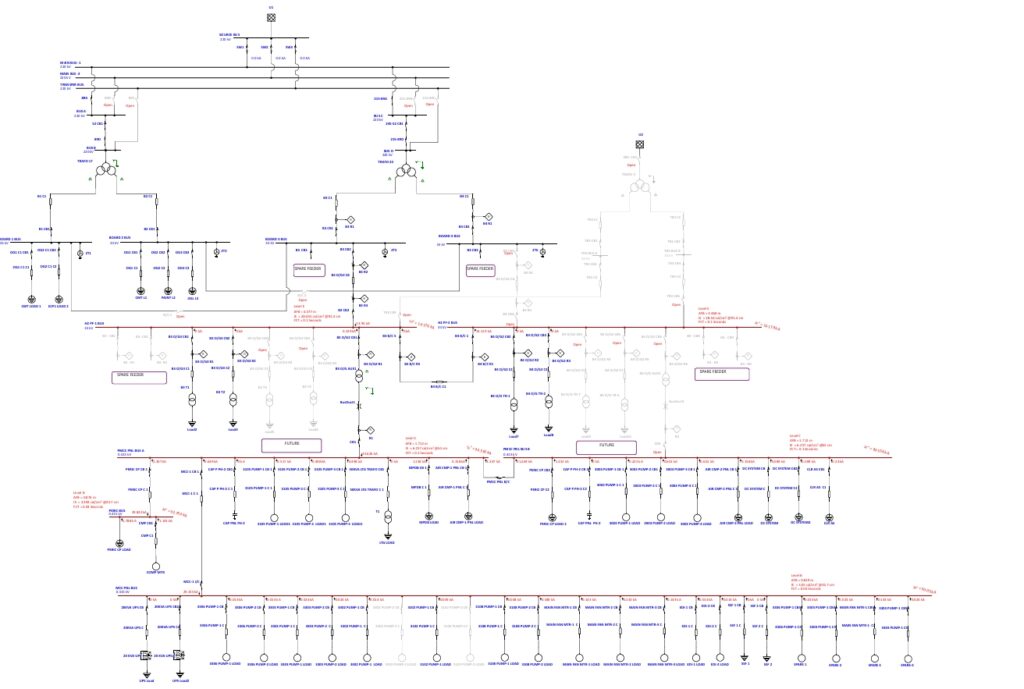

Building the electrical network model with all transformers, cables, motors, breakers, and relays.
2. Short-Circuit Calculations
Finding the available fault current at each bus.
3. Protection Coordination Review
Checking that relays and breakers operate in the correct sequence and clear faults within safe time limits.
4. Incident Energy Calculation
Using IEEE 1584 formulas to calculate the amount of heat energy released during an arc fault.

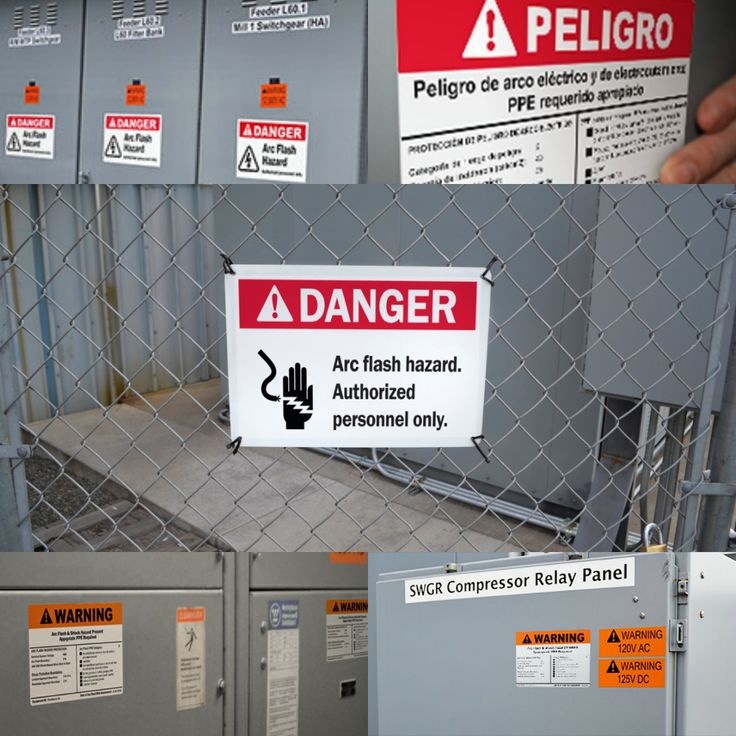

5. Arc Flash Labels
Marking equipment with important safety information:
Incident energy value
Arc flash boundary
Working distance
Required PPE category
Why Arc Flash Analysis Is Essential
Arc flash analysis helps to understand how much heat and energy can be released during a fault and how far the hazard can spread. The study provides:
Incident Energy Levels
Measured in cal/cm², used to decide the severity of burns and PPE needed.
Arc Flash Boundary
The distance at which a worker may be exposed to 1.2 cal/cm² of energy.
Required PPE Category
Specifies the arc-rated clothing and protective equipment workers must use.
Trip Times of Protection Devices
Ensures relays and breakers operate quickly to reduce incident energy.
Compliance with Standards
Meets the requirements of IEEE 1584-2018, NFPA 70E, and IEC 61482.
Arc flash analysis improves safety at the workplace and reduces the chance of major equipment failures.
Conclusion
Arc flash hazards present serious risks in electrical systems; however, these risks can be significantly reduced through a proper arc flash study. By identifying hazards, ensuring compliance with safety standards, and improving system reliability, organizations can create a safer working environment.
